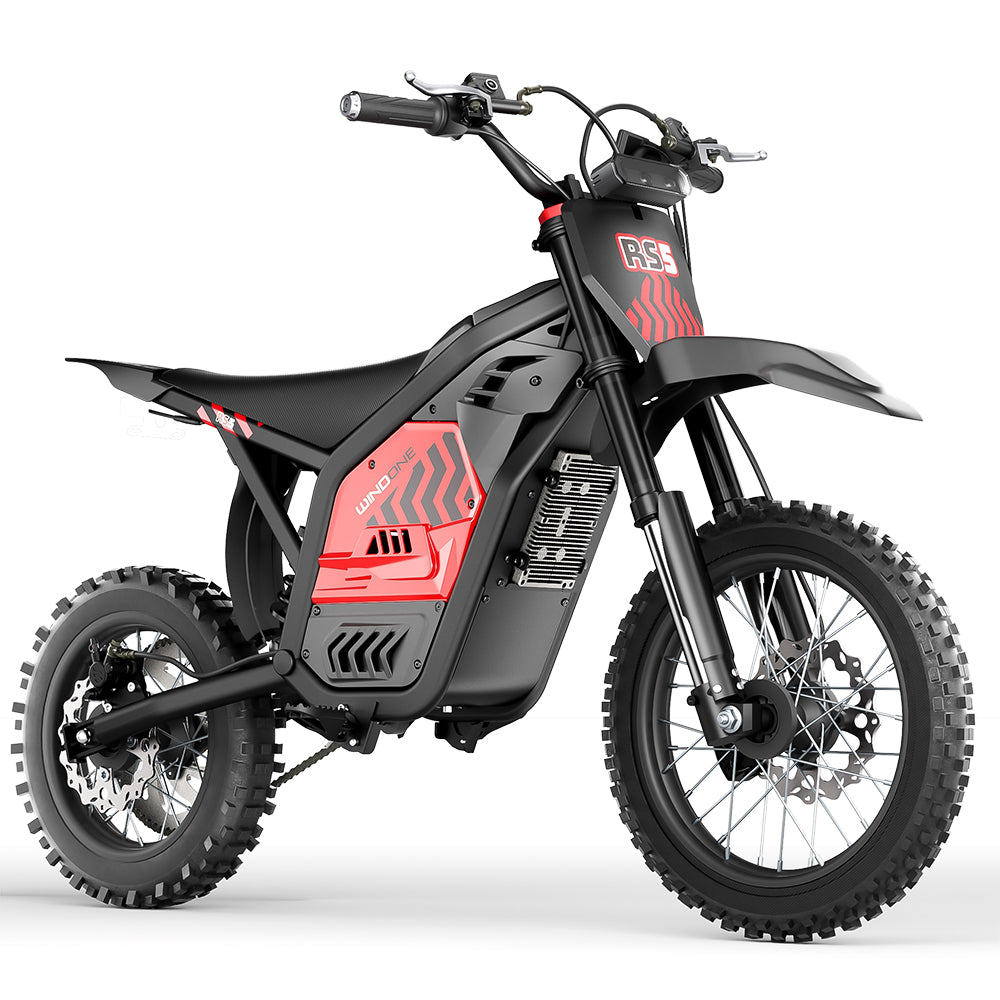

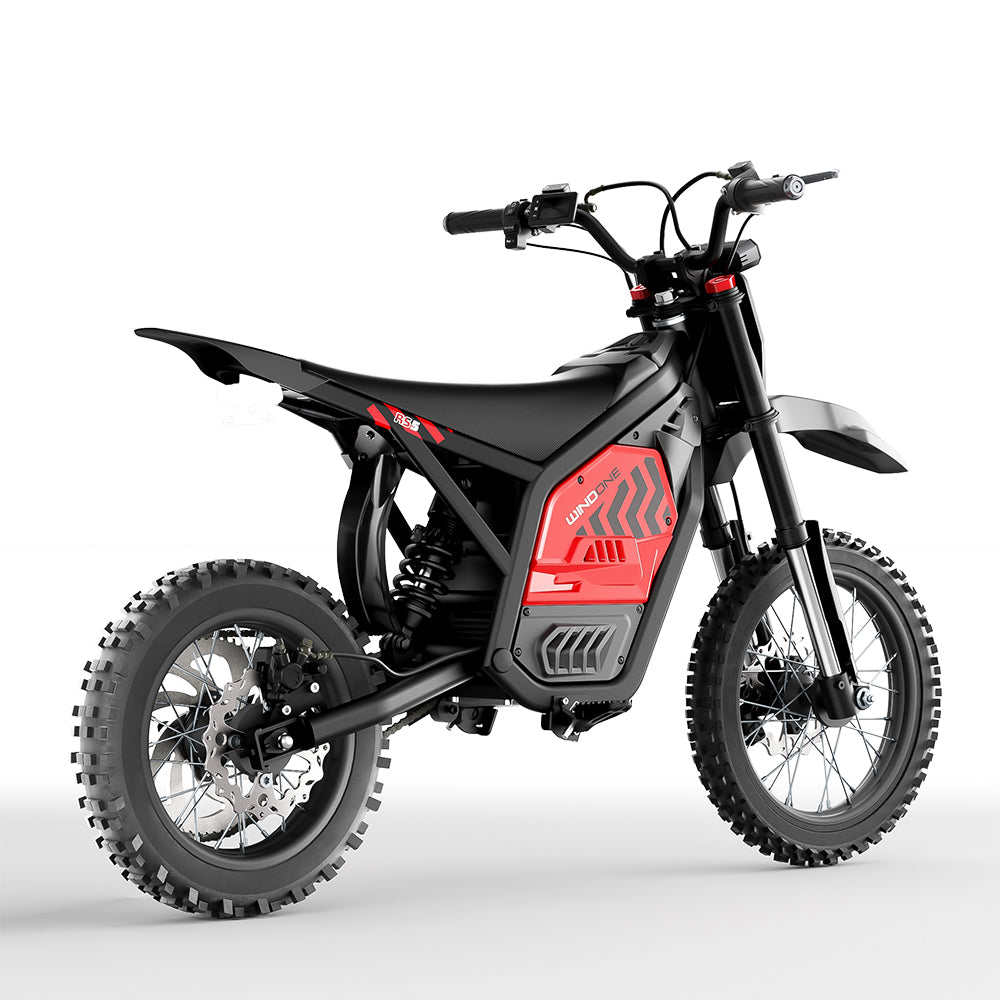

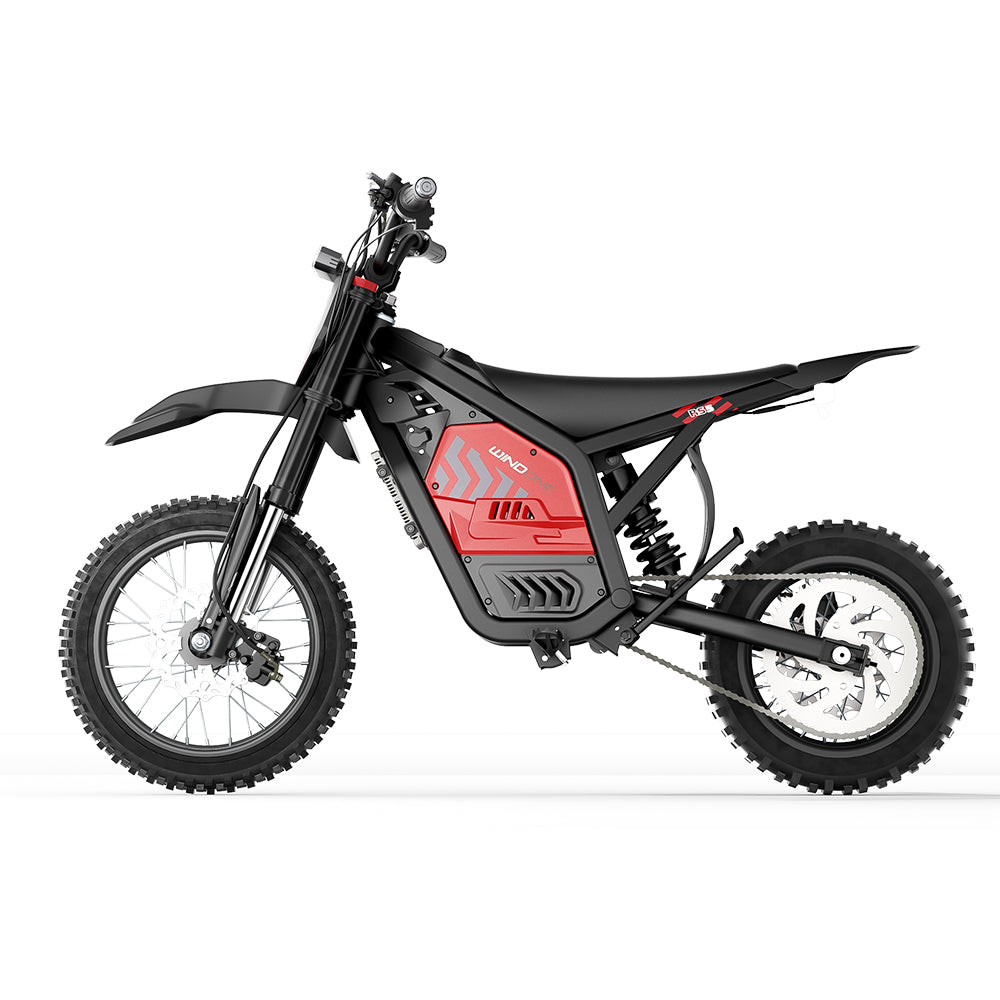

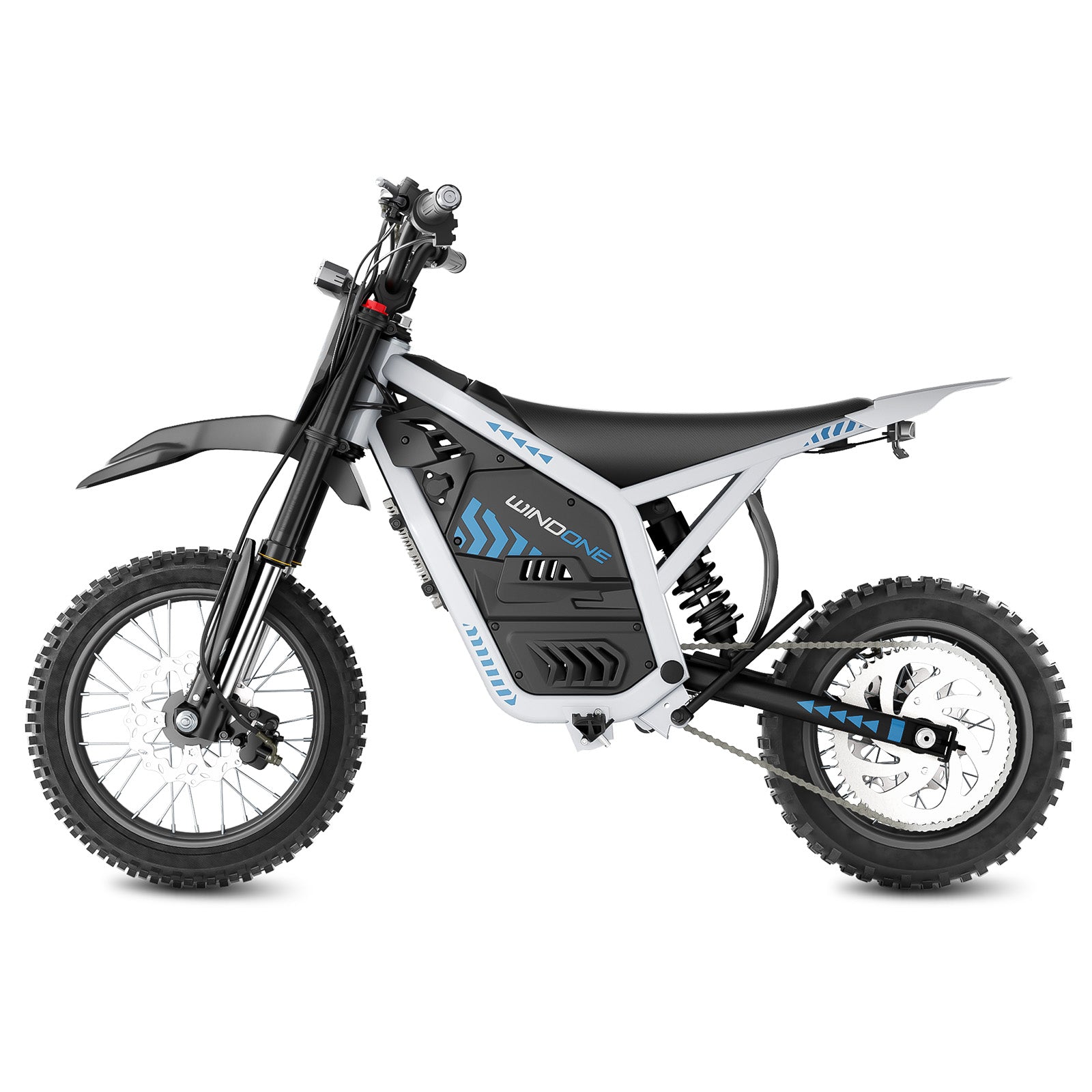

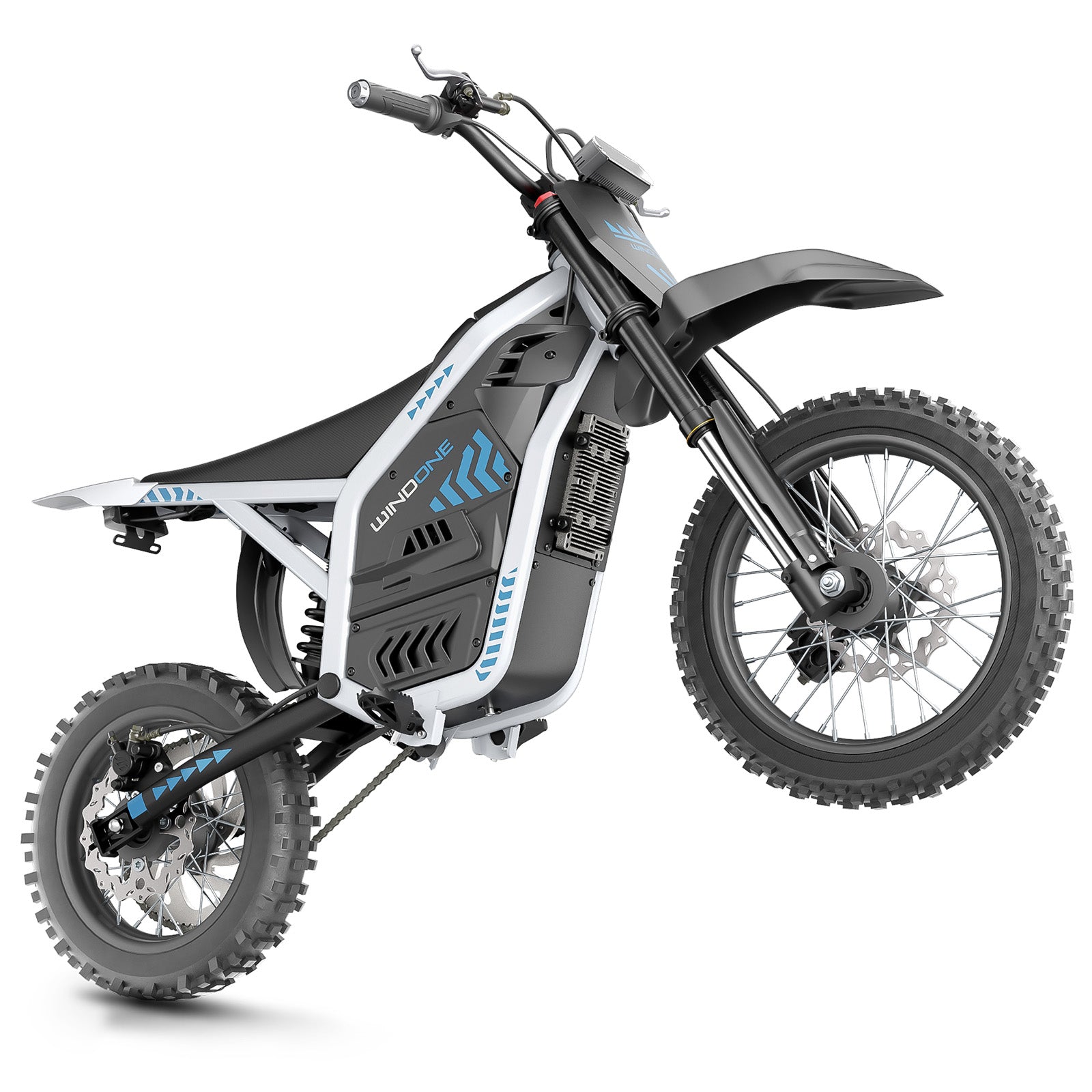

Windone RS5 Electric Dirt Bike
Windone RS5 Electric Dirt Bike
Windone RS5 Electric Dirt Bike
Windone RS5 Electric Dirt Bike
Windone RS5 Electric Dirt Bike
Windone RS5 Electric Dirt Bike

Windone RS5 Electric Dirt Bike

$1,099.99 $1,899.99
Save $800.00

4 Interest-free payments with Afterpay
Quantity:
image image
image image

UNLOCK YOUR DISCOUNT CODE

UNLOCK YOUR DISCOUNT CODE

FAST & FREE SHIPPING — 3–5 business days (U.S.)

0% FINANCING with Afterpay & PayPal

90% PRE-ASSEMBLED — Ready to Ride

NO SALES TAX — No hidden fees

QUESTION? Email us at support@windone.com

⚠

Please follow local Ebike laws and wear a helmet for safety!

50% OFF ONE PHONE MOUNT WITH E-BIKE

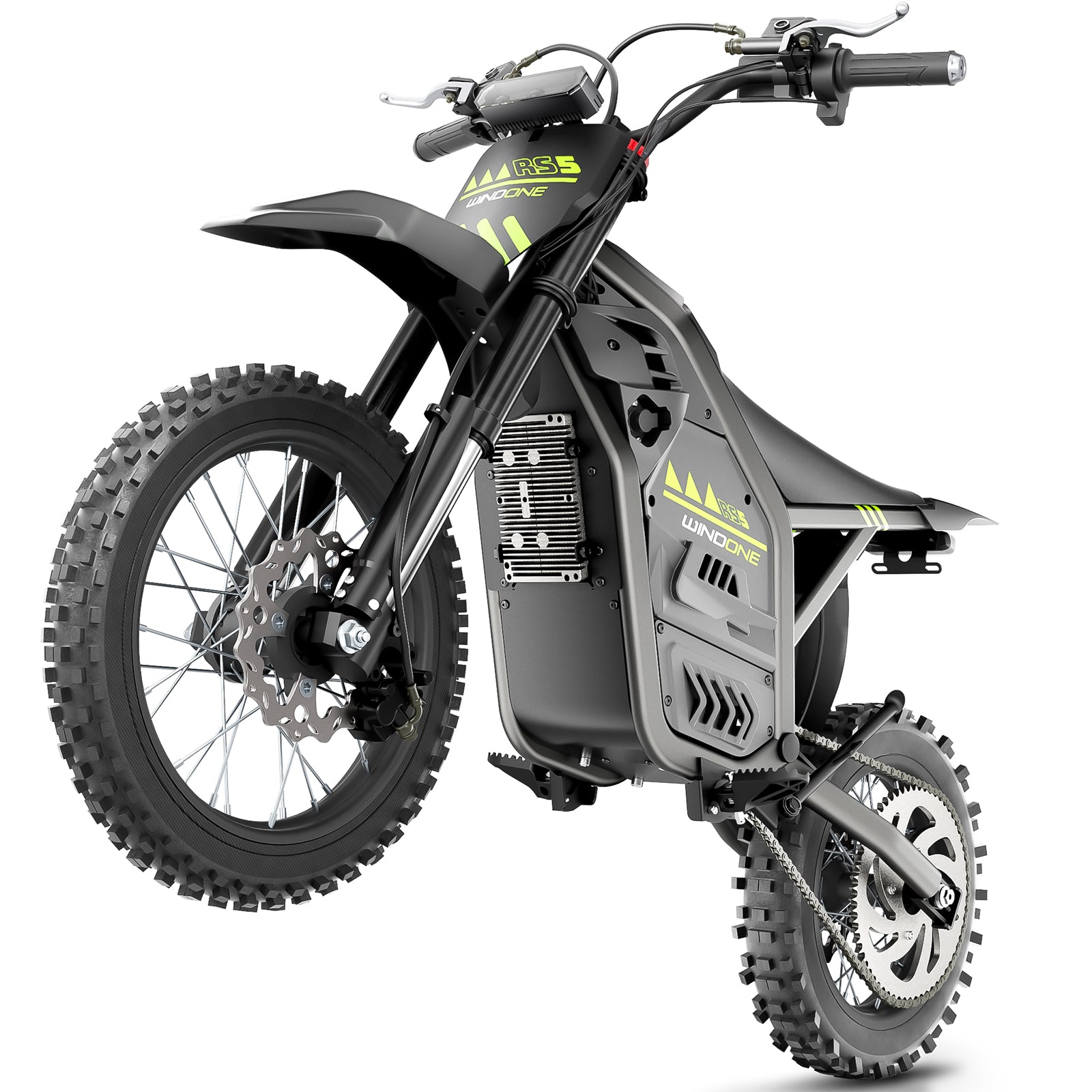

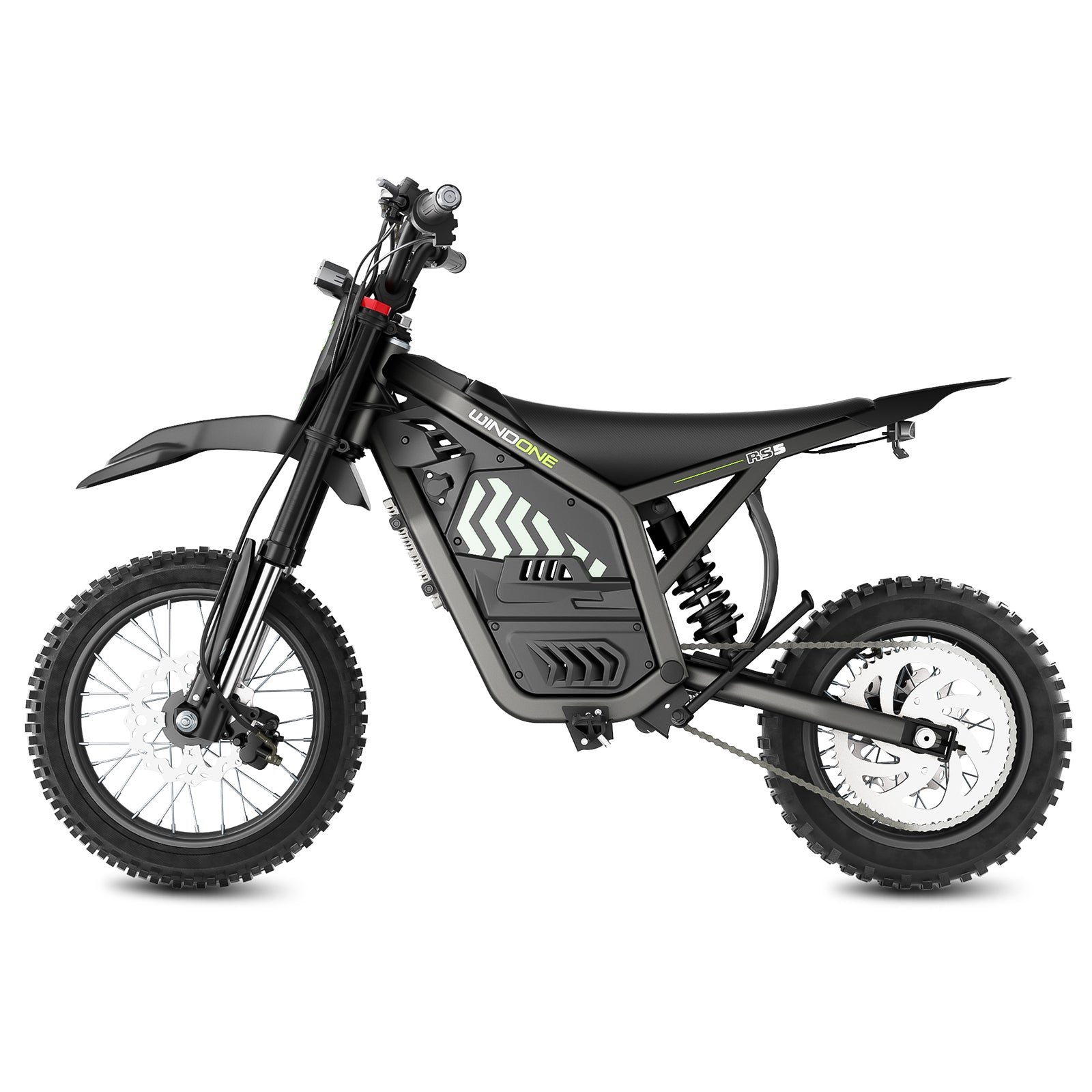

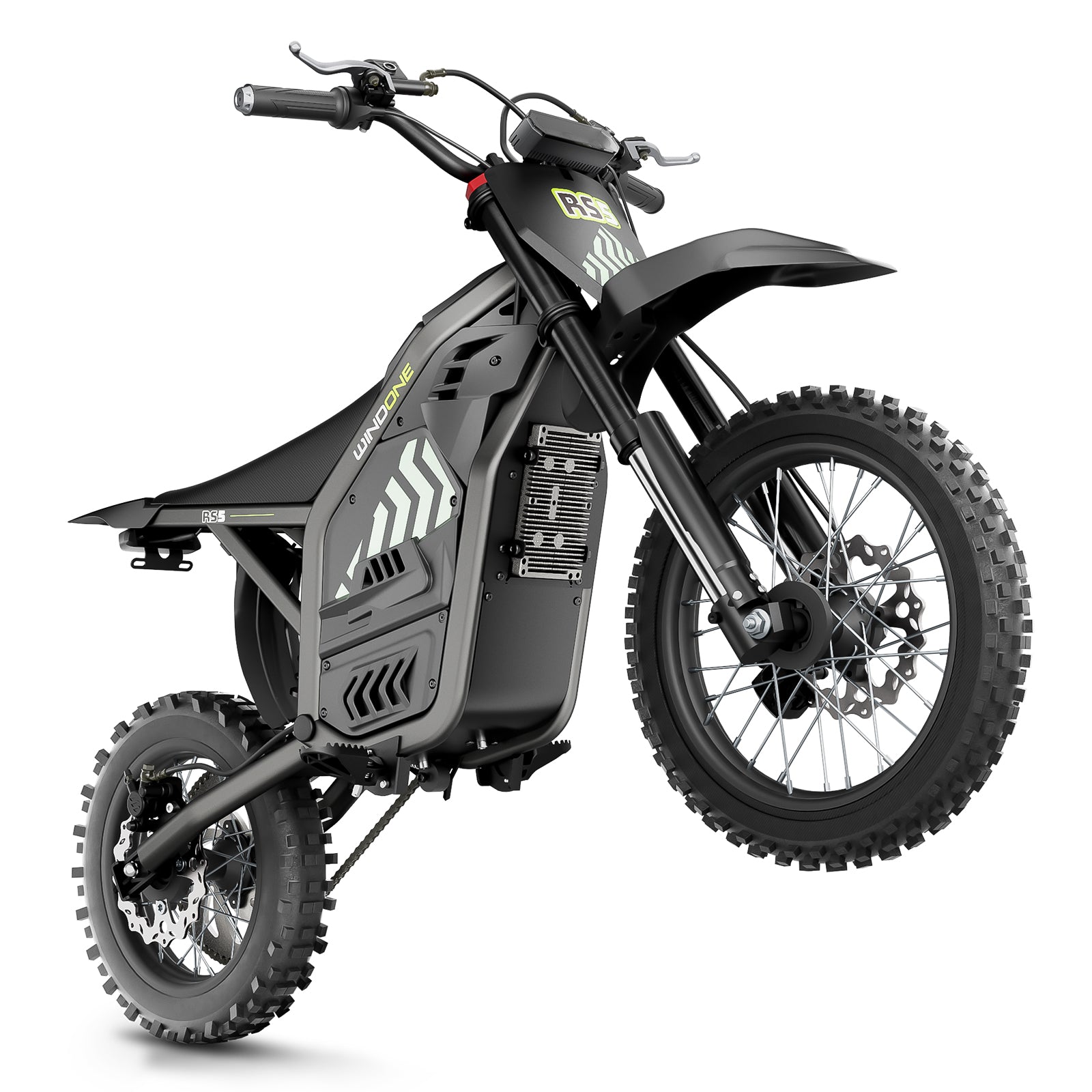

The Off-Road Challenger

Conquer any terrain with 2200W power, advanced suspension, and precision hydraulic brakes. Built to push limits — ride stronger, farther, and bolder.

48V 22.5AH

45 Miles Range

2200W

Peak Power

37 MPH

Top Speed

14"/12"

Front/Rear fat tires

DUAL FRONT

Hydraulic Suspension

265 LBs.

Payload Capacity

SPECIFICATIONS

Top Speed 37 mph

Max Range 45 Miles

Battery 1080 Wh (48V 22.5Ah)

Power 1000W（2200W Peak）

Throttle Full Twist Throttle

Waterproof Class IPX6

Hill Climbing 30°
image image

Frame Iron

Suspension Front Hydraulic Suspension

Brakes Dual Hydraulic Disc Brakes

Tires  14"/12" | Front/Rear Fat Tires

Head Light  LED

Tail Light  LED ( turn on when the head light is on )

Horn  Yes

Bike 1

Charger 1

Manual 1

Battery Key 2

Pedal (R and L) 2

Wrenches 4

L-Shaped Wrenches 5

Screwdriver 1

Seat Cushion Shock Sbsorber 1

Manual & Owner Documents

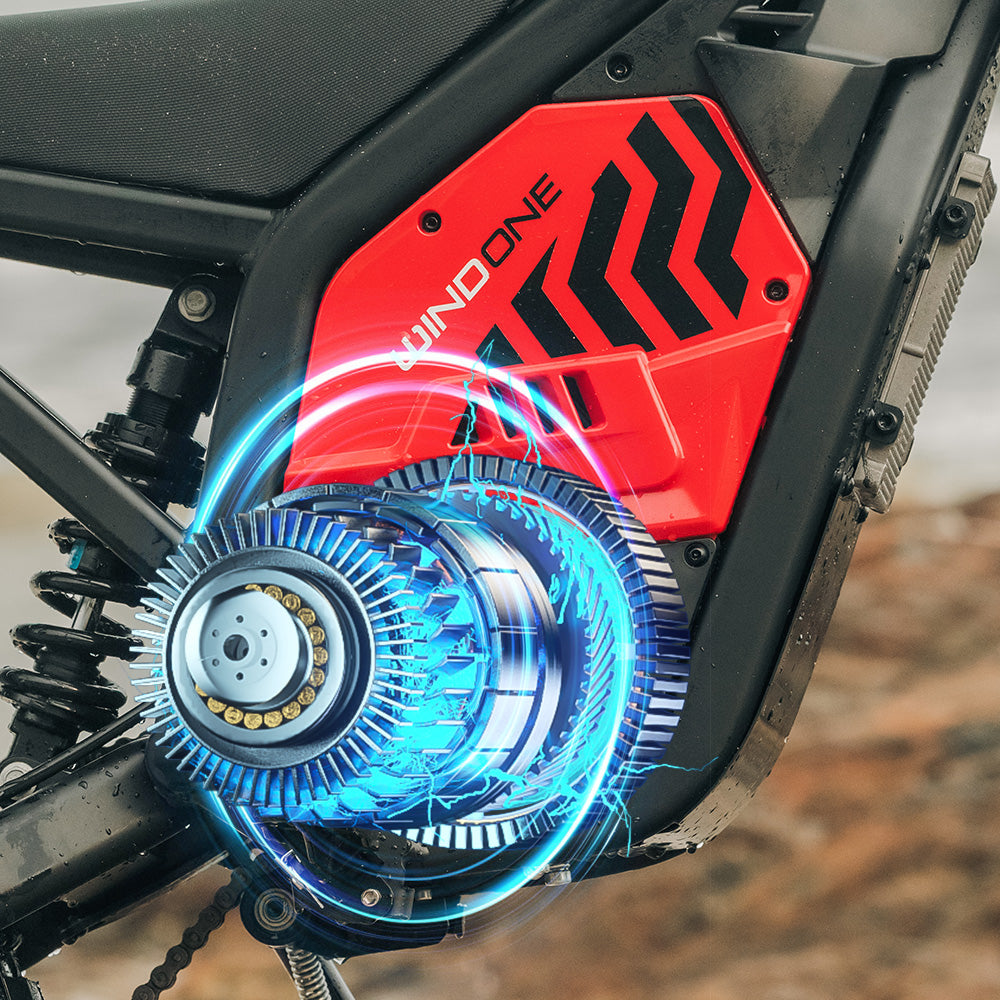

2200W Peak Mid-drive Motor

This Mid-drive motor delivers a consistent 1000W output, with peak power surging to 2200W for exceptional performance.

Dual-Size Puncture-Resistant Fat Tires

Equipped with a 14" front tire and 12" rear tire, these rugged, puncture-resistant tires feature deep, durable treads to ensure smooth and stable rides on all terrains.

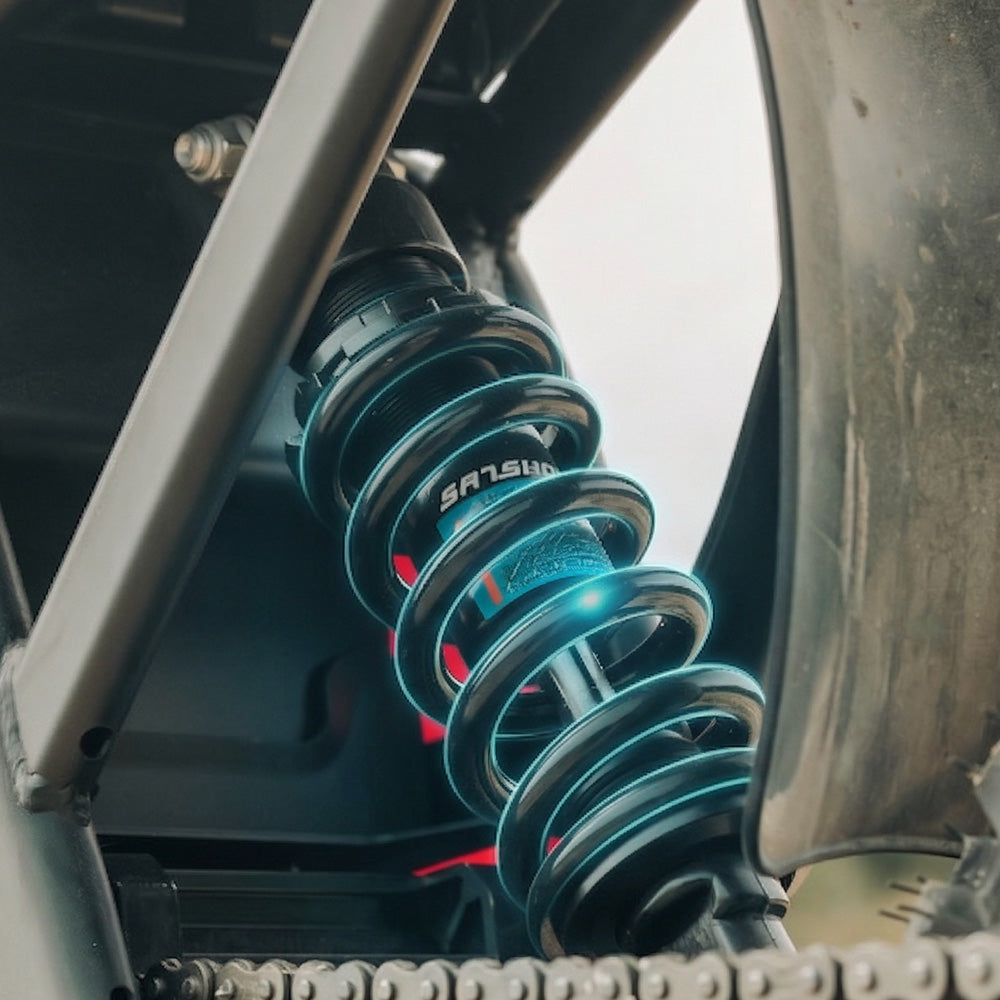

Rear Nitrogen Gas Shock Absorber

Fitted with a premium rear nitrogen gas shock absorber, this system effectively dampens shocks and vibrations for superior stability, comfort, and control. Enjoy a smoother, more confident ride on pavement, gravel, or rugged trails.

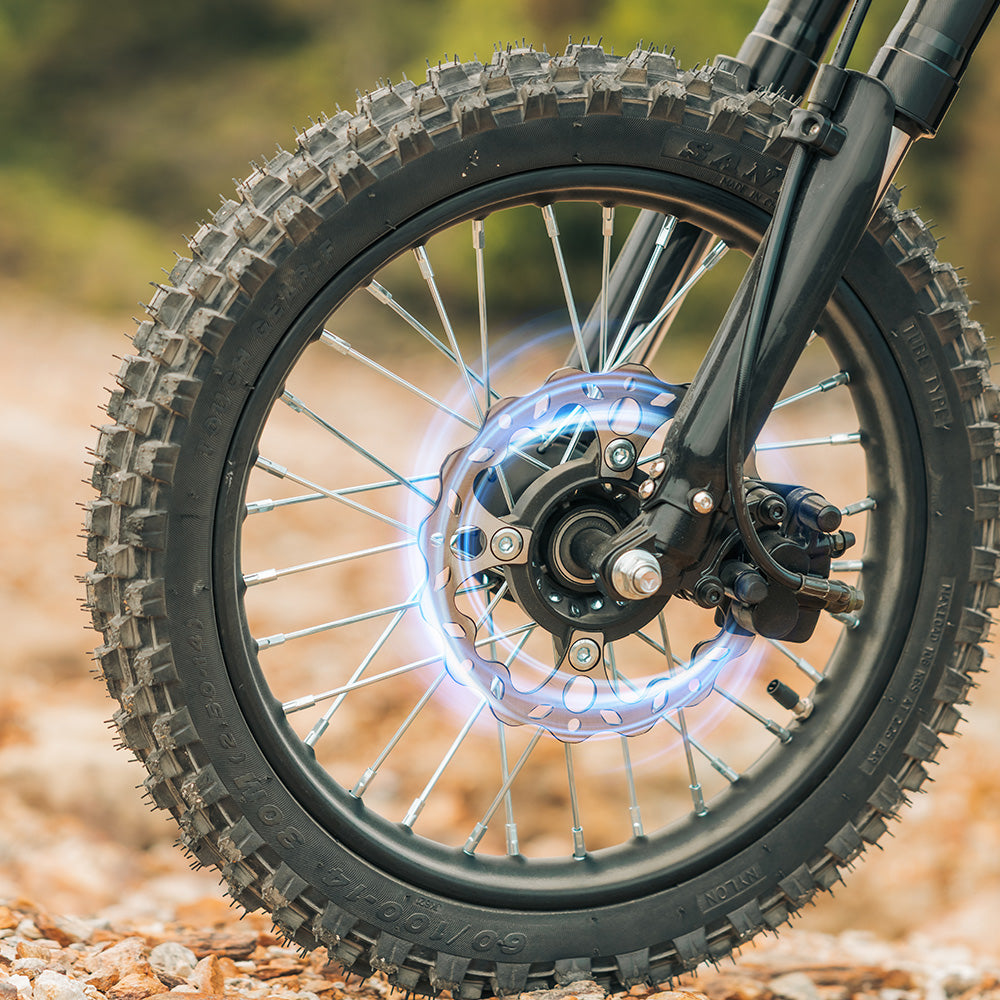

Front & Rear Hydraulic Disc Brakes

This e-bike is equipped with front and rear hydraulic disc brakes, delivering powerful and reliable stopping performance in all conditions. Whether riding on wet roads or rugged trails, you can enjoy precise control and unwavering confidence with every stop.

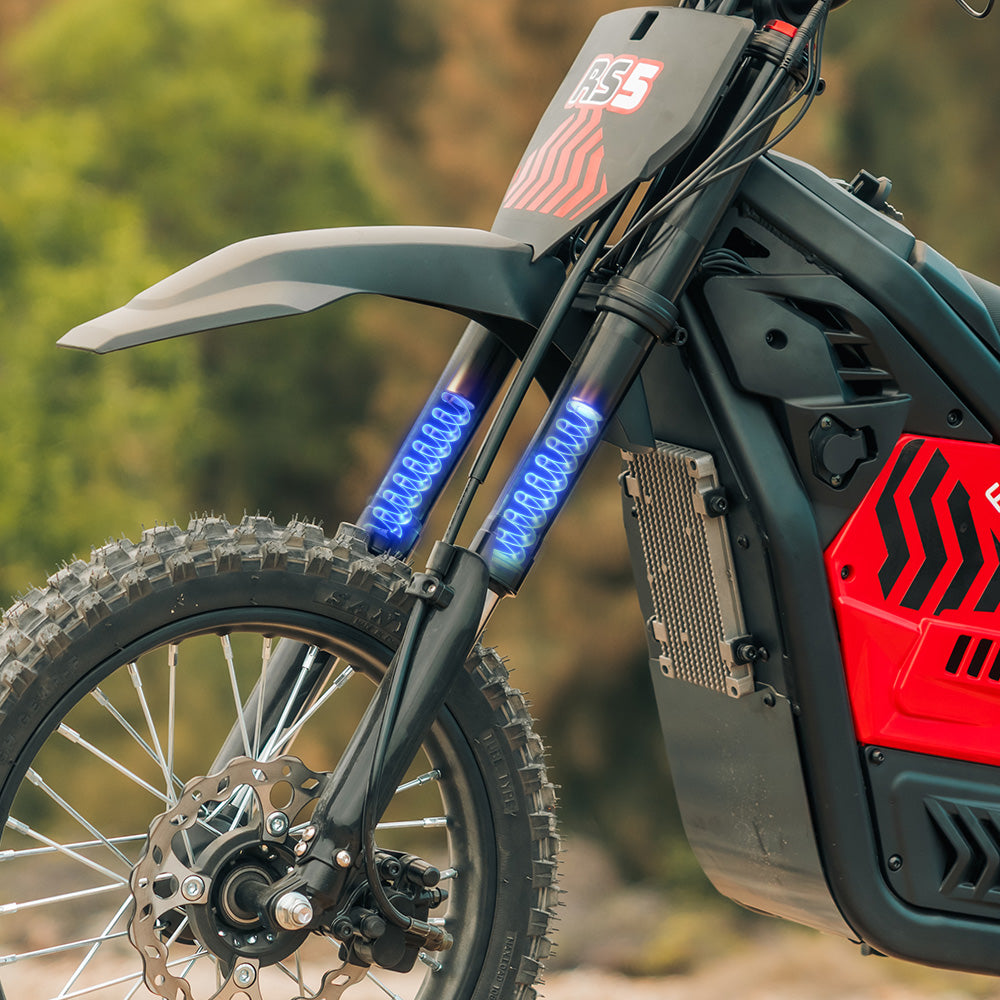

145mm Front Fork Suspension

Tackle any terrain with 145mm of responsive suspension travel. Whether navigating rocky trails or cruising through city streets, this advanced front fork absorbs bumps and irregularities for a smoother, more controlled, and thoroughly enjoyable ride.

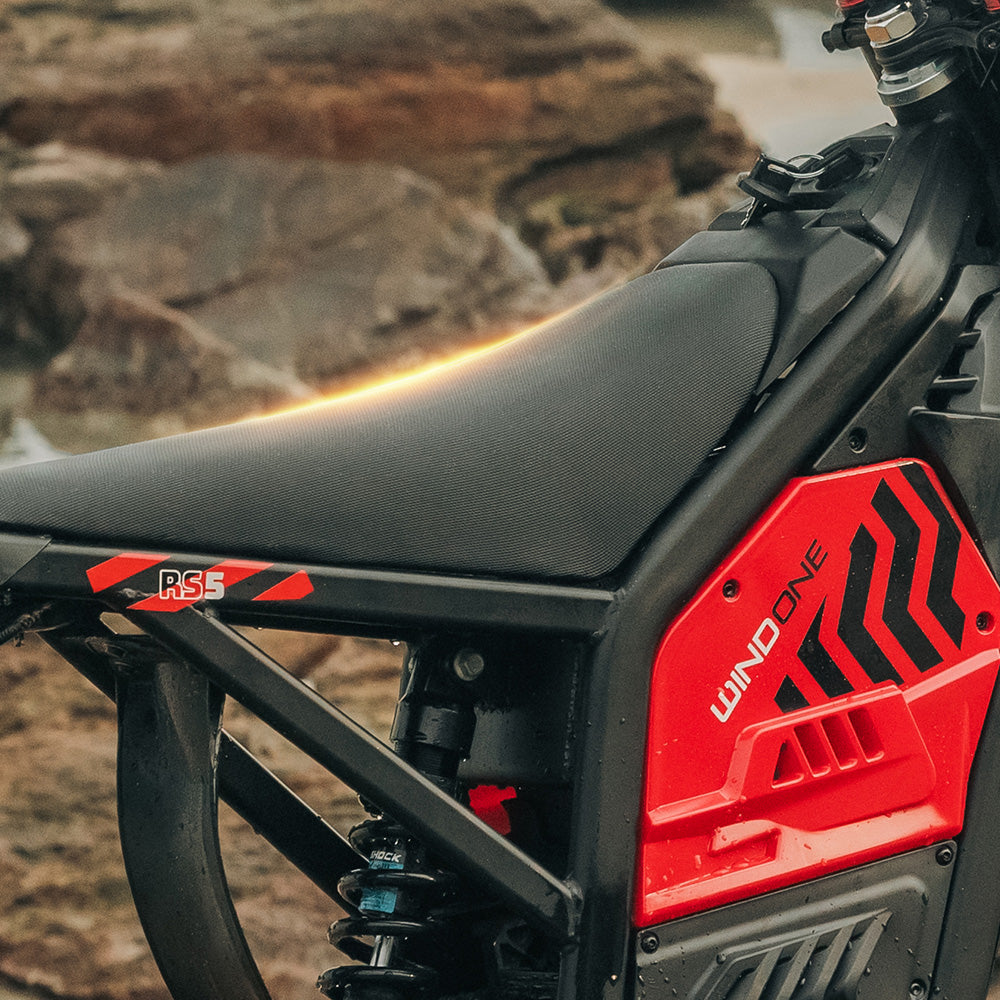

Extended Comfort Seat

Engineered for long-lasting comfort, the extended soft-touch seat provides premium cushioning and ergonomic support to minimize fatigue. Whether you're cruising through city streets or exploring rugged trails, enjoy a consistently smooth and comfortable ride, mile after mile.

Start the Adventure with Power & Fun

The RS5 is powered by a robust 2200W motor, producing 146Nm of torque for an exhilarating riding experience. Conquer varied terrain with ease and enjoy powerful acceleration that fuels your sense of adventure.

Fat Tires for All-Terrain Adventures

Tackle any terrain with confidence! The 14" front and 12" rear fat tires provide exceptional grip and stability, whether you're navigating city streets, rocky beaches, grassy fields, or winding forest trails.

Reliable Stopping Power

The RS5 features three selectable speed modes — 15 MPH for secure starts, 22 MPH for efficient cruising, and 37 MPH for high-speed excitement — so you can adapt to any riding style or terrain. Its reliable motor braking system ensures safe, controlled riding, making it an accessible and confidence-inspiring choice for beginners, teens, and adults.

FAQ

Apart from the exterior appearance, the parameters are completely identical, and the overall dimensions of the ebike body remain unchanged.

The RS5 reaches up to 37 mph (60 km/h) in its highest speed mode.
Three selectable speed levels allow safe riding for beginners, teens, and adults.

Under typical riding conditions, the RS5 offers up to 46.6 miles (75 km) of range with pedal assist.

Actual range varies based on terrain, rider weight, temperature, and riding style.

The RS5 is rated IPX4 water-resistant, meaning it can handle light rain and splashes.

However, deep water, heavy rain, and submersion are not recommended, as they may damage electrical components.

The RS5 arrives 90% pre-assembled. Most customers only need to install the handlebars, front wheel, and a few minor parts.

E01 — Controller Error

Meaning: The controller is not functioning properly.

How to check:

  • Ensure all controller connectors are fully plugged in
  • Check for loose, damaged, or corroded wires
  • Replace the controller if the issue persists

E22 — Throttle Error

Meaning: Throttle signal abnormal.

How to check:

  • Confirm the throttle returns to its neutral position
  • Check the throttle connector for looseness or damage
  • Replace the throttle assembly if needed

E23 — Motor Hall Error

Meaning: Abnormal motor Hall sensor signal.

How to check:

  • Check the motor Hall connector for secure contact
  • Inspect wiring for damage
  • Sensor may need replacement; in some cases the motor assembly may require service

E24 — Motor Hall Signal Lost

Meaning: No Hall sensor signal detected.

How to check:

  • Ensure the motor Hall connector is fully inserted
  • If wiring is intact but no signal is detected, the Hall sensor is likely faulty and may need replacement

E25 — Brake Lever Fault

Meaning: The brake lever is not installed in the correct position, or there is an issue with the brake lever itself.

How to check:

  • Ensure brake levers return fully after releasing
  • Check brake sensor wires for damage or loose connections
  • Replace the brake lever/sensor if necessary

E26 — Low Battery Voltage

Meaning: Battery voltage is below the operating range.

How to fix:

  • Fully charge the battery
  • If low voltage remains after charging, contact customer support to check battery health

E30 — Dashboard Communication Error

Meaning: The display and controller cannot communicate.

How to check:

  • Check the display connector for proper contact
  • Ensure cables are not loose or damaged
  • Replace the display or controller if the issue continues

E40 — Controller Cannot Receive Display Signal

Meaning: The controller is not receiving data from the display.

How to check:

  • Inspect the display cable connection
  • Reseat or replace connectors if needed
  • Display or controller replacement may be required
